Understanding whether there is electricity flowing through a wire is a fundamental skill in various fields, from electrical engineering to DIY home projects. This knowledge is not only crucial for ensuring safety but also for troubleshooting electrical systems effectively. In this article, we will explore various methods to determine the presence of electricity in a wire, the tools required, and best practices to ensure accurate readings while prioritizing safety.
Understanding Electrical Current
Before diving into detection methods, it’s essential to grasp the concept of electrical current. Electricity flows through conductors, such as copper wires, in the form of electrons moving from a higher potential (voltage) to a lower potential. The presence of voltage indicates that there is a potential for current to flow, but it does not confirm that current is actively flowing. Therefore, detecting electricity in a wire involves measuring both voltage and current.
Methods to Detect Electricity in a Wire
- Using a Multimeter
A multimeter is one of the most versatile tools for detecting electricity. It can measure voltage, current, and resistance, making it invaluable for electrical diagnostics.

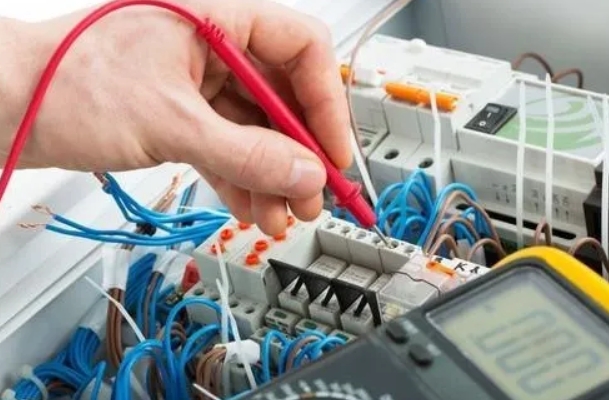

- Measuring Voltage: Set the multimeter to the AC or DC voltage setting, depending on the type of circuit you are testing. Connect the probes to the wire—red to the positive side and black to the ground or negative side. A reading on the display indicates the presence of voltage, confirming that electricity is present in the wire.
- Measuring Current: To measure current, the multimeter must be connected in series with the circuit. This requires breaking the circuit at the point where you want to measure the current. Once connected, the multimeter will display the current flowing through the wire.
- Non-Contact Voltage Testers
For those who prefer a safer and quicker method, non-contact voltage testers are an excellent option. These devices can detect the presence of voltage without direct contact with the wire.
- How It Works: Simply hold the tester near the wire. If it detects an electric field, it will emit a sound or light up, indicating that voltage is present. While these testers are convenient, they may not provide precise voltage readings, so they should be used as a preliminary check.
- Clamp Meters
Clamp meters are specialized tools designed to measure current without needing to disconnect the wire. They work by clamping around the wire and measuring the magnetic field generated by the current flow.
- Usage: To use a clamp meter, simply open the clamp and place it around the wire. The meter will display the current flowing through the wire. This method is particularly useful for high-current applications where breaking the circuit is impractical.
Safety Precautions
When working with electricity, safety should always be your top priority. Here are some essential safety tips:
- Always Assume Wires are Live: Even if you believe a wire is not carrying current, treat it as if it is live until you can confirm otherwise.
- Use Insulated Tools: Ensure that any tools you use are properly insulated to prevent accidental shocks.
- Wear Personal Protective Equipment (PPE): Safety glasses and gloves can provide an additional layer of protection.
- Work in a Dry Environment: Water is a conductor of electricity, so ensure your workspace is dry to minimize the risk of shock.
Conclusion
Detecting electricity in a wire is a critical skill that can enhance your safety and efficiency in handling electrical systems. Whether you choose to use a multimeter, a non-contact voltage tester, or a clamp meter, understanding the principles behind these tools will empower you to make informed decisions in your electrical endeavors. Always prioritize safety and ensure that you are equipped with the right knowledge and tools before embarking on any electrical work. With these methods and precautions in mind, you can confidently determine the presence of electricity in a wire and tackle your electrical projects with assurance.
